Reference: | Change Request 1201 |
Version No: | 1.0 |
Subject: | NHS Data Model and Dictionary Modelling Changes - Location Type |
Effective Date: | Immediate |
Reason for Change: | Change to Data Standards |
Publication Date: | 24 February 2011 |
Background:
The NHS Data Model and Dictionary Service are currently working with the Department of Health and The NHS Information Centre for Health and Social Care to develop a number of Data Sets.
During the business analysis stage, it has been identified that these Data Sets cover a number of common areas which are either not currently in the NHS Data Model and Dictionary or amendments are required to make the current information suitable for use in these Data Sets.
This Change Request adds the common data items and associated data modelling changes for "Activity Location Type" into the NHS Data Model and Dictionary in preparation for these Data Sets. The changes are detailed in the "Summary of changes" below.
The primary purpose is to introduce a new Activity Location Type Code Attribute and Data Element into the NHS Data Model and Dictionary to support the new data sets currently under development. This will enable the new data sets to use the generic data items and codes.
These changes do not need to be implemented in end-user systems until the Information Standards Notices for the specific data sets come into effect. Other specific items will be added to the Data Sets during development.
Summary of changes:
Date: | 24 February 2011 |
Sponsor: | Nicholas Oughtibridge, Acting Director - Data Standards and Products, Technology Office, Department of Health Informatics Directorate |
Note: New text is shown with a blue background. Deleted text is crossed out. Retired text is shown in grey. Within the Diagrams deleted classes and relationships are red, changed items are blue and new items are green.
Click here for a printer friendly view of this page.
Change to Supporting Information: Changed Description
The Diagnostics Waiting Times and Activity Data Set provides definitions to support the national data collections on DIAGNOSTIC TESTS, a key element towards monitoring waits from referral to treatment. ORGANISATIONS responsible for the DIAGNOSTIC TEST activity report the DIAGNOSTIC TEST waiting times and the number of tests completed.
This data set is for the monthly return covering 15 key DIAGNOSTIC TESTS as below:
IMAGING
Magnetic Resonance Imaging
Computer Tomography
Non-obstetric ultrasound
Barium Enema
DEXA Scan (Dual-energy X-ray absorptiometry)
PHYSIOLOGICAL MEASUREMENT
Audiology - audiological assessments
Cardiology - echocardiography
Cardiology - electrophysiology
Neurophysiology - peripheral neurophysiology
Respiratory physiology - sleep studies
Urodynamics - pressures & flows
ENDOSCOPY
Colonoscopy
Flexible sigmoidoscopy
Cystoscopy
Gastroscopy
How the data set is transmitted
Information is to be submitted onto the Unify2 database that has been developed and maintained by the Department of Health. Full guidance on Unify2 can be found at the following address:Unify2 Forum
Further guidance
Guidance on extracting the data sets and PATIENT PATHWAYS, including OPCS Classification of Interventions and Procedures, can be found at:Department of Health - Monthly and Biannual Diagnostics Statistics - Definitions
and NHS 18 weeks - Guidance.
Change to Supporting Information: Changed Description
Face To Face Contact Community Care is a CARE CONTACT.
A contact which is made by one or more nurses or community support workers (nursing) with a PATIENT or his/her proxy during a Community Episode. The contact occurs when a PATIENT or their proxy attends a clinic or when the nurse or community support worker (nursing) makes a domiciliary visit to see the PATIENT.
A proxy contact is a single occasion involving contact between a proxy and one or more members of a community nurse staff group within a Nursing In The Community Programme. Contacts with proxies only count if the contact is in lieu of the contact with the PATIENT, and the proxy is able more effectively than the PATIENT to ensure that the specified advice/treatment devised for the PATIENT is followed. This is most likely to be the case where the PATIENT is unable to communicate effectively say for an infant, or for a PERSON who is mentally ill or has learning disabilities.
One or more nurses or community support workers (nursing) in the same or different Nursing In The Community Programmes may be in contact with a PATIENT at the same time.
Contacts should be recorded as follows:
a. | If one or more NURSES or community support workers (nursing) from the same programme are in contact with one PATIENT at the same time, this should be recorded as one face-to-face contact |
b. | If one or more NURSES or community support workers (nursing) from different programmes are in contact with one PATIENT at the same time, this should be recorded as one contact for each programme involved |
c. | For contacts at a Day Care Facility, where repeated contacts may occur during the course of a day, this should be recorded as one contact for each programme involved |
d. | If two NURSES of different disciplines but both classed in the community nurse staff group other community nurses, such as stomatherapist and a continuing care nurse, are in contact with one PATIENT at the same time, this should be recorded as two face-to-face contacts, one for each discipline |
Group activity, where, for example, general advice is given to several PATIENTS at the same time should not be recorded as Nurse or Midwife Contacts.
A Face To Face Contact Community Care may involve activities attributable to a structured programme, such as the following:
a. | Screening Test |
b. | Group Session |
c. | Health Promotion Other Activity |
d. | EDUCATIONAL ASSESSMENT |
e. | Test Of Immunity |
f. | Immunisation Dose Given |
g. | Face To Face Contact Surveillance |
For such activities they must be recorded as part of the respective structured programmes as well as attributed to the Nursing In The Community Programmes.
If the PATIENT is currently subject to a Mental Health Care Spell and the contact NURSE is also their allocated care programme approach care coordinator then a Face To Face Contact CPA Care Coordinator should also be recorded.
For domiciliary visits, an indication of whether the Face To Face Contact Community Care is the first occasion on which a PATIENT is seen should be recorded as an initial contact. A LOCATION TYPE should also be recorded. A LOCATION type should also be recorded.
Information recorded for a Face To Face Contact Community Care includes:
Change to Supporting Information: Changed Description
Face To Face Contact CPA Care Coordinator is a CARE CONTACT.
A face to face contact between a PATIENT subject to a Care Programme Approach Episode, and their currently allocated care programme approach care coordinator
In cases where contact arises due to:
- or a Ward Attendance
- or a Day Care Attendance
- or a face to face Acute Home-Based Contact
Each contact must have a Care Programme Approach Care Co-ordinator Allocation.
Information recorded for a Face To Face Contact CPA Care Coordinator includes:
Change to Supporting Information: Changed Description
Face To Face Contact Social Worker is a CARE CONTACT.
A face to face contact between a PATIENT subject to a Mental Health Care Spell and a Local Authority Social Services Social Worker. The Social Worker may be a Mental Health Care Team Member. When the contact involves the presence of more than one Social Worker at the same time, then it is still considered as a single occurrence of a face to face contact.
In the case of contact arising due to a Social Services Statutory Assessment then both the Face To Face Contact Social Worker and the Social Services Statutory Assessment will be recorded.
When the Social Worker is also the allocated care programme approach care coordinator for the PATIENT then a Face To Face Contact CPA Care Coordinator should also be recorded.
Information recorded for a Face To Face Contact Social Worker includes:
Change to Supporting Information: Changed Description
Face To Face Contact Surveillance is a CARE CONTACT.
A contact made by a health service professional with a PERSON during a Surveillance Programme Stage.
Information recorded for a Face To Face Contact Surveillance includes:
Change to Supporting Information: Changed Description
The Department of Health requires summary details from Primary Care Trusts to monitor the implementation and effectiveness of the Human Papillomavirus (HPV) Immunisation Programme.
The Human Papillomavirus Vaccination Programme for England commenced in September 2008, the first TARGET POPULATION being for females born between 1st September 1995 and 31st August 1996. This is the first HEALTH PROGRAMME STAGE for a routine annual Immunisation Programme for all 12-13 year old females.
Details of the routine and catch-up collections for the Human Papillomavirus Immunisation Programme are available at: Department of Health Key Vaccine Information
It is recommended for the vaccine delivery to be in Schools/Colleges but Primary Care Trusts are responsible for implementing the programme according to their local needs.
Each Primary Care Trust will collect and return data on the females in a particular TARGET POPULATION. Primary Care Trusts are recommended to run a Schools-based programme, but some may choose not to. The ANNUAL TARGET DENOMINATOR (HUMAN PAPILLOMAVIRUS VACCINE) will either be Schools based or non-Schools based.
The Human Papillomavirus vaccine requires 3 separate doses to complete a full course. It is recommended that this full course is given within a 6 month period, but it may be given in a period of up to 12 months. However, to allow for those that missed one or more doses in their TARGET POPULATION year, summary data will be collected every year for each TARGET POPULATION until those PERSONS reach 18 years old.
Although data is collected monthly in the HPV Immunisation Programme Vaccine Monitoring Monthly Minimum Data Set, it is recognised that Primary Care Trusts may not be aware of the number of other females they are responsible for at the start of the HPV Immunisation Programme Vaccine Monitoring Monthly Minimum Data Set campaign year. However by the end of the School Year, Primary Care Trusts will have had opportunity to complete vaccinations for any others they are responsible for and these will be included in the HPV Immunisation Programme Vaccine Monitoring Annual Minimum Data Set together with the HPV Immunisation Programme Vaccine Monitoring Monthly Minimum Data Sets.
The HPV Immunisation Programme Vaccine Monitoring Annual Minimum Data Set requires information on the number of doses administered as well as the administration LOCATION TYPES.The HPV Immunisation Programme Vaccine Monitoring Annual Minimum Data Set requires information on the number of doses administered as well as the administration LOCATION TYPE CODES.
Collection and Submission of the HPV Immunisation Programme Vaccine Monitoring Annual Minimum Data Set
- The HPV Immunisation Programme Vaccine Monitoring Annual Minimum Data Set is the School Year end annual return from Primary Care Trusts.
- The return must be submitted within 20 working days after the previous School Year end of 31st August.
- The data is submitted via a web form on the Health Protection Informatics website
- Primary Care Trust, HEALTH PROGRAMME STAGE NUMBER (HUMAN PAPILLOMAVIRUS VACCINE), REPORTING PERIOD and ANNUAL TARGET DENOMINATOR (HUMAN PAPILLOMAVIRUS VACCINE)
- Doses administered (by each of the three doses)
Doses administered byLOCATION TYPE.- Doses administered by LOCATION TYPE CODE.
Change to Supporting Information: Changed status to Retired, Name, Description
The codes enable the classification ofLOCATION TYPE. This is the type of physical location wherePATIENTSare seen or where services are provided or from which requests for services are sent.EachLOCATIONmust be classified by one, and only one,LOCATION TYPE, i.e. once a building (or department or unit within that building) has been allocated a specificLOCATION TYPE, thatLOCATION TYPEshould be used by all users regardless of the type of activity, specialty or client group involved. TheLOCATION TYPEshould only be altered if there is a complete change in use.Note that the termProfessional Staff Grouprefers to health professional staff and covers Chiropody, Clinical Psychology, Dietetics, Occupational Therapy, Physiotherapy and Speech and Language Therapy.Please note that the following Central Return forms have been discontinued with effect from the 1st April 2004:KC56 - Patient Care in the Community: District NursingKC57 - Patient Care in the Community: Community Psychiatric NursingKC58 - Patient Care in the Community: Learning Disability NursingTables 1 to 3 gives the groupings used on the following Central Returns:KC56: Patient Care in the Community: District NursingKC57: Patient Care in the Community: Community Psychiatric NursingKC58: Patient Care in the Community: Learning Disability NursingNote that the leading zero of Location Type Code should be omitted for use with the cdstab/CDS.Location Type CodesCodeDescription001Client's or Patient's Home002Health Centre003GP Practicepremises other than Health Centre004Ward on NHS Hospital Site006Hospice007Other Voluntary or Private Hospital or Nursing Home008Group Home managed by the NHS009Group Home managed by Local Authority010Group Home managed by Voluntary or Private Agents011Other Residential Care Homes managed by Local Authority012Other Residential Care Homes managed by Voluntary or Private Agents013NHS Day Care Facility on NHS Hospital Site014NHS Day Care Facility on Other Sites015Day Centre managed by Local Authority016Day Centre managed by Voluntary or Private Agents017NHS Consultant Clinic Premises on a NHS Hospital site018NHS Consultant Clinic Premises off a NHS Hospital site019Health Clinic managed by the NHS020Health Clinic managed by Voluntary or Private Agents021Resource Centre on NHS Hospital Site022Resource Centre managed by the NHS off NHS Hospital Site023Resource Centre managed by Local Authority024Resource Centre managed by Voluntary or Private Agents025Professional Staff Group Department on NHS Hospital Site026Professional Staff Group Department managed by the NHS off NHS Hospital Site027Professional Staff Group Department managed by Local Authority028Professional Staff Group Department managed by Voluntary or Private Agents029Educational EstablishmentPremises managed by Local Authority or Grant Maintained030Educational EstablishmentPremises managed by Voluntary or Private Agents031Other Health or Local Authority Facility on NHS Hospital Site032Other Health or Local Authority Site managed by the NHS off NHS Hospital Site033Other Health or Local Authority Site managed by Local Authority034Other Health or Local Authority Site managed by Voluntary or Private Agents035Prison Department Establishments036Public Place or Street, or Police Station037Other locations not classified elsewhere038NHS Nursing Home039Other Residential Care Homes managed by the NHS
Location Type Codes has been retired from the NHS Data Model and Dictionary. The codes have been added to the Attribute LOCATION TYPE CODE.
The last live version of the Location Codes is available in the January 2011 release of the NHS Data Model and Dictionary.
Access to this version can be obtained by emailing datastandards@nhs.net with "NHS Data Model and Dictionary - Archive Request" in the email subject line.
Change to Supporting Information: Changed status to Retired, Name, Description
- Retired Location Type Codes
- Changed Name from Web_Site_Content.Supporting_Information.Location_Type_Codes to Retired.Web_Site_Content.Supporting_Information.Location_Type_Codes
- Changed Description
Change to Supporting Information: Changed Description
Professional Advice And Support Contact is a CARE CONTACT.
A contact by one or more members of a PROFESSIONAL ADVICE AND SUPPORT STAFF GROUP with a PATIENT, and/or the PATIENT's proxy e.g. PATIENT looking after elderly relative, at a specific LOCATION TYPE and occurring as a result of a Professional Advice And Support Programme.A contact by one or more members of a PROFESSIONAL ADVICE AND SUPPORT STAFF GROUP with a PATIENT, and/or the PATIENT's proxy e.g. PATIENT looking after elderly relative, at a specific type of LOCATION and occurring as a result of a Professional Advice And Support Programme.
A proxy contact is a single occasion involving contact between a proxy, and one or more members of a PROFESSIONAL ADVICE AND SUPPORT STAFF GROUP within a Professional Advice And Support Programme. Contacts with proxies only count if the contact is in lieu of the contact with the PERSON, and the proxy is able more effectively than the PERSON to ensure that specific professional advice is followed. This is most likely to be the case where the PERSON is unable to communicate effectively say for an infant, or for a PERSON who is mentally ill or has learning disabilities.
Where both the proxy and the PERSON are present at the contact, only one face-to-face contact should be recorded.
Contacts by student health visitors with clients in the absence of a registered Specialist Community Public Health Nurse - Health Visitor should be included.
Generally a contact will be pre-arranged but, in exceptional circumstances, an un-planned meeting may result in a substantial amount of advice or support being given and this should then be recorded.
If a contact made by a PROFESSIONAL ADVICE AND SUPPORT STAFF GROUP includes an ACTIVITY which is part of one of the Structured Programmes, it should not be counted as part of a Professional Advice And Support Programme.
Change to Supporting Information: Changed Description
Professional Staff Group Contact is a CARE CONTACT.
A single occasion involving contact between a PATIENT or his/her proxy and one or more members of a professional staff group discipline from a Professional Staff Group Department, including paid support staff working for a professional staff group discipline.
A Professional Staff Group Contact may follow from an Out-Patient Appointment Non-Consultant, in this event the time seen should be recorded.
A proxy contact is a single occasion involving contact between a client/PATIENT or his/her proxy, and one or more members of a professional staff group discipline or relevant staff group for community service. Contacts with proxies count as face-to-face contacts only if the contact is in lieu of the contact with the client, and the proxy is able more effectively than the client to ensure that specific professional advice devised for the client is followed. This is most likely to be the case where the client is unable to communicate effectively say for an infant, or for a PERSON who is mentally ill or learning disabilities.For Professional Staff Group Services, face to face contacts comprise both:
a. | Attendances lasting from the arrival to the departure of the PATIENT |
b. | Visits lasting from the arrival to the departure of professional staff group staff |
One or more members of the professional staff group discipline may be in contact with one or more PATIENTS at the same time and PATIENTS may be seen in association with staff from other disciplines. Contacts should be recorded as follows:
a. | If one or more staff of the same discipline are in contact with one PATIENT at the same time, this should be recorded as one face to face contact |
b. | If staff see a PATIENT with staff of other disciplines, this should be recorded as one face to face contact for each discipline involved |
c. | If one or more staff of one discipline are in contact with a group of PATIENTS at the same time, each PATIENT should be recorded as one face to face contact |
d. | If staff from different disciplines are in contact with a group of PATIENTS at the same time, each PATIENT should be recorded as one face to face contact for each discipline involved |
For physiotherapy, it may not be practical to collect data about all face-to-face contacts; however as a minimum, initial contacts and first contacts in financial year should be recorded.
For occupational therapy, the contact duration should be recorded in half-hour units.
If the PATIENT is currently subject to a Mental Health Care Spell and the member of the professional staff group discipline in contact is also their allocated care programme approach care coordinator then a Face To Face Contact CPA Care Coordinator should also be recorded.
Note: When face-to-face contacts are used for attributing professional staff group costs to MAIN SPECIALTIES, it will be necessary to distinguish between those contacts by PATIENTS using a Hospital Bed, attenders at Consultant Clinics and attenders at Day Care Facilities.
Information recorded for a Professional Staff Group Contact includes:
First Contact In Financial Year
Initial Contact
PATIENT FACILITY GROUP
Time Seen O (if patient attends as a result of a clinic appointment)
Change to Supporting Information: Changed Description
Supporting Information provides information to help users understand and use the NHS Data Model and Dictionary.
Use the links below to access more detailed information: |
Codes: | Organisations and Policies: |
NHS Data Model and Dictionary Information: | Contacts / Links: |
Change to Supporting Information: Changed Description
- Codes
- Administrative Codes
- Clinical Coding
Location Type Codes- Main Specialty and Treatment Function Codes
- Mental Health Act Table
- Metadata Files
- ODS Default Codes
- Organisations and NHS Policies
- NHS Postcode Directory
- NHS Trust Mergers
- Organisations
- NHS Policies
- NHS Data Model and Dictionary Information
- About Version 3
- Change Request Log
- Disclaimer
- Glossary of Terms
- Meta Model
- Contacts/ Links
- Contact Details
- Information Standards Notices (ISNs)
- NHS Data Model and Dictionary Service Website

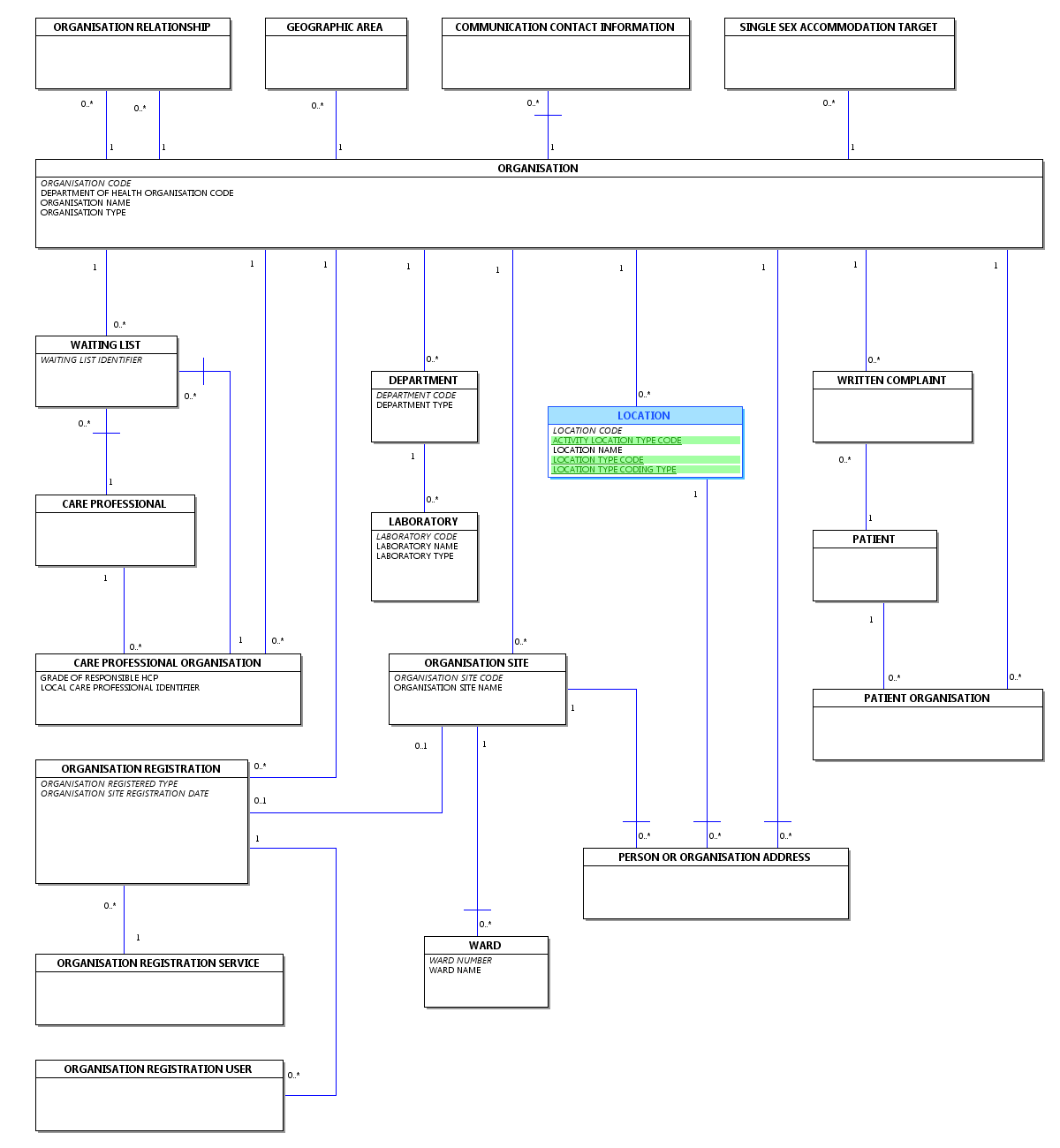

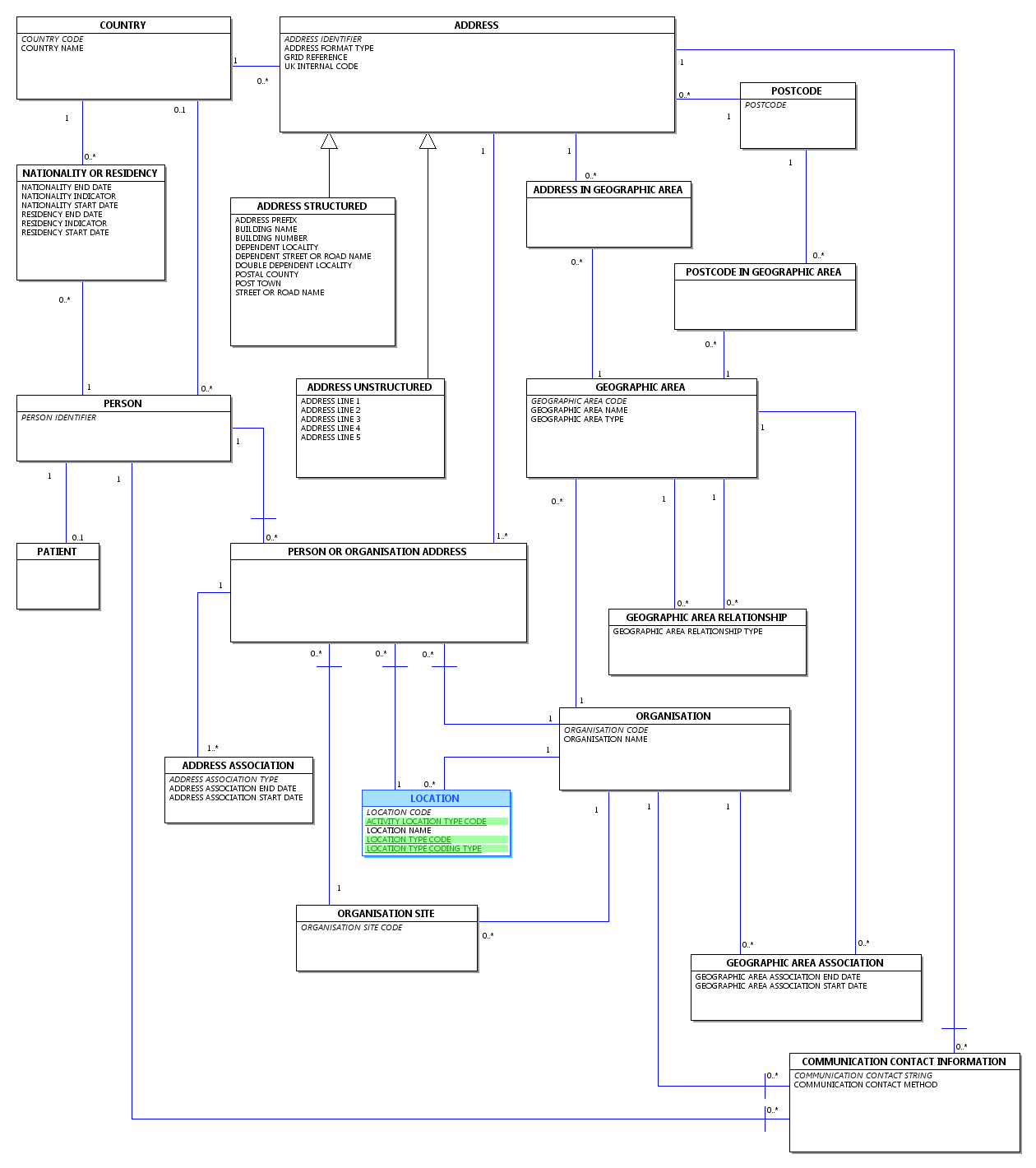

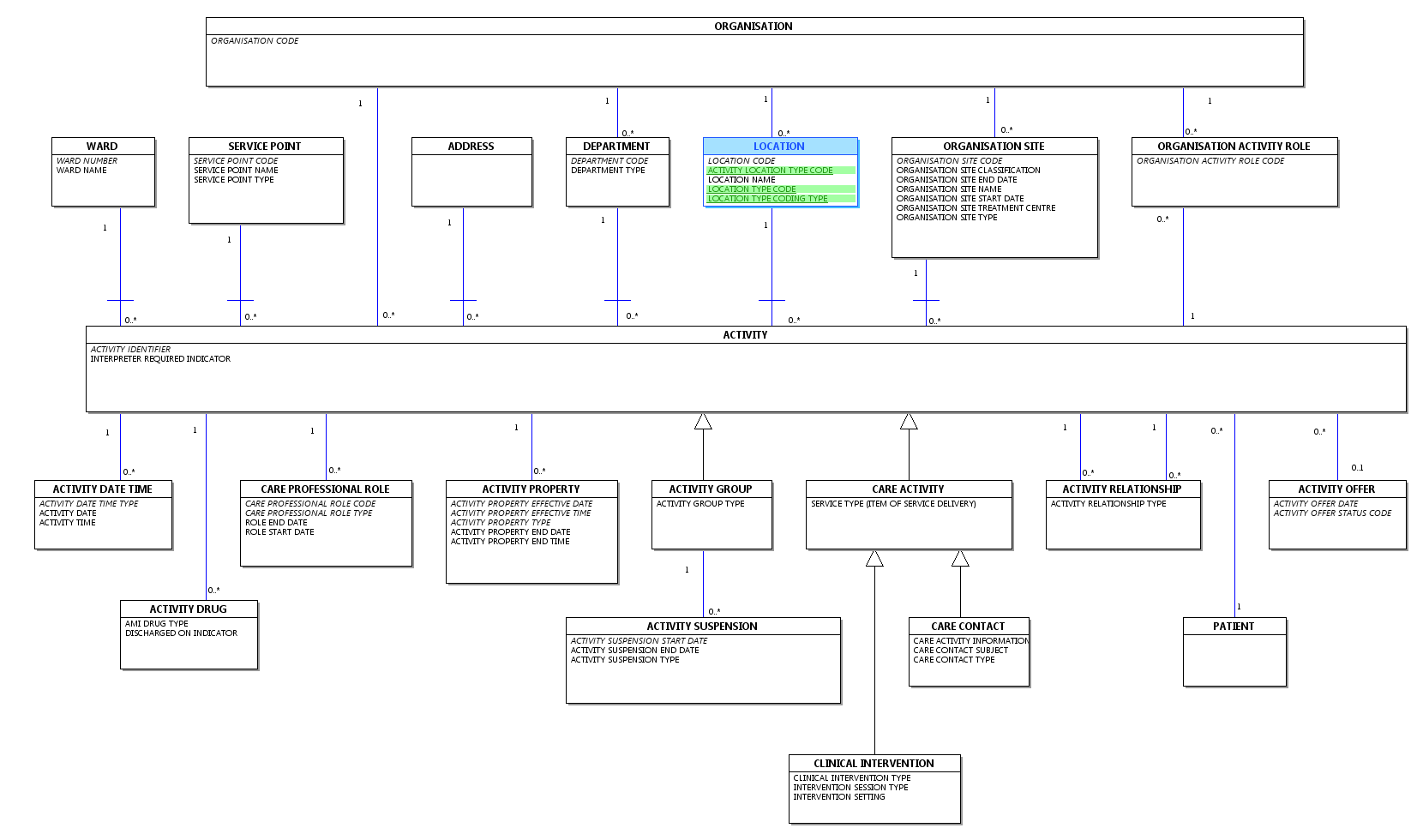

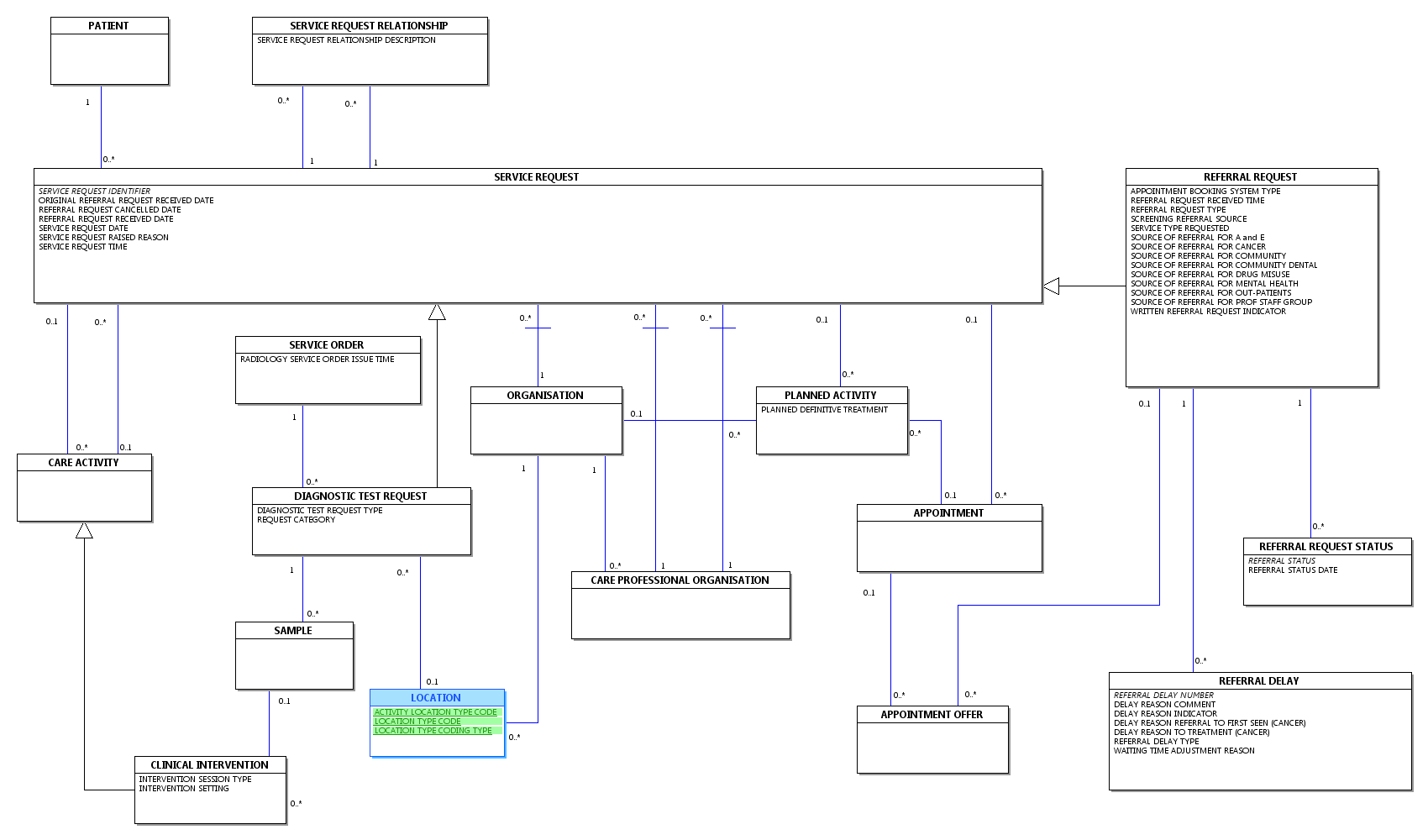

Change to Class: Changed Attributes, Description
A physical LOCATION where PATIENTS are seen or where services exist or from which requests for ACTIVITIES are sent or any other place of interest to an ORGANISATION which is not recorded as an ORGANISATION or an ORGANISATION SITE.A physical LOCATION:
- any other place of interest to an ORGANISATION which is not recorded as an ORGANISATION or an ORGANISATION SITE.
For ACTIVITIES provided by staff groups, LOCATIONS are places where a face-to-face contact or a Group Session occurs.
For diagnostic activities, LOCATIONS either define the whereabouts of the ACTIVITY or the places from which requests are sent.For diagnostic ACTIVITIES, LOCATIONS either define the whereabouts of the ACTIVITY or the places from which requests are sent.
Each LOCATION must be classified by one and only one LOCATION TYPE and the same classification must be used by all users.Each LOCATION must be classified by one and only one type of LOCATION and the same classification must be used by all users.
Change to Class: Changed Attributes, Description
K | LOCATION CODE | |
ACTIVITY LOCATION TYPE CODE | ||
LOCATION NAME | ||
LOCATION TYPE CODE | ||
LOCATION TYPE CODING TYPE |
Change to Class: Changed status to Retired, Name, Description
The type of physical LOCATION where PATIENTS are seen or where SERVICES are provided or from which requests for services are sent.LOCATION TYPE has been retired from the NHS Data Model and Dictionary.
Codes and definitions have been devised to enable the classification of LOCATION TYPE. Each LOCATION must be classified by one, and only one, LOCATION TYPE, i.e. once a building (or DEPARTMENT or unit within that building) has been allocated a specific LOCATION TYPE, that LOCATION TYPE should be used by all users regardless of the type of ACTIVITY, specialty or client group involved. The LOCATION TYPE should only be altered if there is a complete change in use.The last live version of LOCATION TYPE is available in the January 2011 release of the NHS Data Model and Dictionary.
Change to Class: Changed status to Retired, Name, Description
- Retired LOCATION TYPE
- Changed Name from Data_Dictionary.Classes.L.LOCATION_TYPE to Retired.Data_Dictionary.Classes.L.LOCATION_TYPE
- Changed Description
Change to Attribute: New Attribute
The type of LOCATION for an ACTIVITY:
ACTIVITY LOCATION TYPE CODE replaces LOCATION TYPE CODE and should be used for all new and developing data sets and for XML messages.
National Codes:
CODE | VALUE | NOTES |
PATIENT Main Residence or Related Location | ||
A01 | PATIENT's Home | |
A02 | Carer's Home | |
A03 | PATIENT's Workplace | |
A04 | Other PATIENT Related Location | e.g. temporary address |
Health Centre Premises | ||
B01 | Primary Care Health Centre | Primary Care Health Centre with or without GP Practice(s) based in it, providing community-based healthcare services such as podiatry, community dentistry, ophthalmology, minor injuries nursing etc, Sexual and Reproductive Health Service, health promotion etc, and sometimes hosting outreach services from NHS Trusts |
B02 | Polyclinic | Provide similar services to Primary Care Health Centre but also additional services such as diagnostics, minor procedures, Out-Patient Appointments, urgent care etc. and also co-located services with Local Authority Social Care. May also provide extended/out of hours services. |
GENERAL PRACTITIONER and OPHTHALMIC MEDICAL PRACTITIONER | ||
C01 | General Medical Practitioner Practice | Stand-alone GP Practice premises, not part of a Primary Care Health Centre |
C02 | General Dental Practice | Stand-alone GP Practice premises, not part of a Primary Care Health Centre |
C03 | OPHTHALMIC MEDICAL PRACTITIONER Premises | |
Walk In Centres, Out of Hours Premises and Emergency Community Dental Services | ||
D01 | Walk In Centre | May be NHS GENERAL PRACTITIONER Led, NURSE-led, or provided by private company. May be sited in different areas – Primary Care Trust premises, on hospital sites, in retail premises etc |
D02 | Out of Hours Centre | May be NHS GENERAL PRACTITIONER-Led, NURSE-led, or provided by private company. May be sited in different areas – Primary Care Trust premises, on hospital sites, in retail premises etc |
D03 | Emergency Community Dental Service | Run by Community Dental Services not GENERAL DENTAL PRACTITIONERS |
Locations on Hospital Premises | ||
E01 | Out-Patient Clinic | |
E02 | WARD | |
E03 | Day Hospital | |
E04 | Accident and Emergency or Minor Injuries Department | |
E99 | Other Departments | e.g. Pathology Laboratories, physiotherapy, diagnostic imaging, Occupational Therapy, pharmacy etc |
Hospice Premises | ||
F01 | Hospice | |
Nursing and Residential Homes | ||
G01 | Residential Care Home | |
G02 | Nursing Home | See appropriate section of Care Home |
G03 | Children's Home |
|
Day Centre Premises | ||
H01 | Day Centre | Facilities operated by the NHS, Social Services or private or voluntary bodies, providing day care and respite care for elderly or disabled people |
Resource Centre Premises | ||
J01 | Resource Centre | Premises where information and support for PATIENTS and their families/carers is provided. |
Dedicated Facilities for Children and Families | ||
K01 | Sure Start Children’s Centre | Children’s centres are service hubs where children under five years old and their families can receive seamless integrated services and information. Services vary according to centre but may include:
|
K02 | Child Development Centre | |
Educational, Childcare and Training Establishments | ||
L01 | School | Including Extended Services, where provided on School premises (where provided off School premises, use other appropriate location) |
L02 | Further Education College | |
L03 | University | |
L04 | Nursery Premises | Pre-school Nurseries attached to Schools would be classed as Schools in their own right |
L05 | Other Childcare Premises | e.g. Childminder |
L06 | Training Establishments | |
L99 | Other Educational Premises | Such as Teenage Pregnancy Units, School Preparation Units (for toddlers), Pupil Referral Units (excluded older children and young people), units providing specialist education e.g. deaf children, autistic children etc |
Justice and Home Office Premises | ||
M01 | Prison | |
M02 | Probation Service Premises | |
M03 | Police Station | |
M04 | Young Offenders Institution | |
M05 | Immigration Centre | |
Public Locations | ||
N01 | Street or other public open space | Public areas such as streets, parks, outdoor sports facilities etc |
N02 | Other publicly accessible area or building | Publicly accessible premises such as Youth Centres, supermarkets, shops and other retail locations such as shopping centres, community facilities such as libraries, church halls, community centres etc |
N03 | Voluntary or charitable agency premises | |
N04 | Dispensing Optician Premises | |
N05 | Dispensing Pharmacy Premises | Where it is not on a Hospital Site |
Other Locations | ||
X01 | Other locations not elsewhere classified |
This attribute is also known by these names:
Context | Alias |
---|---|
plural | ACTIVITY LOCATION TYPE CODES |
Change to Attribute: Changed Description
A code identifying the type of LOCATION.
See Location Type Codes for the codes.LOCATION TYPE CODE will be replaced with ACTIVITY LOCATION TYPE CODE, which should be used for all new and developing data sets and for XML messages.
001 | Client's or PATIENT's Home |
002 | Health Centre |
003 | GP Practice premises other than Health Centre |
004 | WARD on NHS Hospital Site |
006 | Hospice |
007 | Other Voluntary or Private Hospital or Nursing Home |
008 | Group Home managed by the NHS |
009 | Group Home managed by Local Authority |
010 | Group Home managed by Voluntary or Private Agents |
011 | Other Residential Care Homes managed by Local Authority |
012 | Other Residential Care Homes managed by Voluntary or Private Agents |
013 | NHS Day Care Facility on NHS Hospital Site |
014 | NHS Day Care Facility on Other Sites |
015 | Day Centre managed by Local Authority |
016 | Day Centre managed by Voluntary or Private Agents |
017 | NHS Consultant Clinic Premises on a NHS Hospital site |
018 | NHS Consultant Clinic Premises off a NHS Hospital site |
019 | Health Clinic managed by the NHS |
020 | Health Clinic managed by Voluntary or Private Agents |
021 | Resource Centre on NHS Hospital Site |
022 | Resource Centre managed by the NHS off NHS Hospital Site |
023 | Resource Centre managed by Local Authority |
024 | Resource Centre managed by Voluntary or Private Agents |
025 | Professional Staff Group Department on NHS Hospital Site |
026 | Professional Staff Group Department managed by the NHS off NHS Hospital Site |
027 | Professional Staff Group Department managed by Local Authority |
028 | Professional Staff Group Department managed by Voluntary or Private Agents |
029 | Educational Establishment Premises managed by Local Authority or Grant Maintained |
030 | Educational Establishment Premises managed by Voluntary or Private Agents |
031 | Other Health or Local Authority Facility on NHS Hospital Site |
032 | Other Health or Local Authority Site managed by the NHS off NHS Hospital Site |
033 | Other Health or Local Authority Site managed by Local Authority |
034 | Other Health or Local Authority Site managed by Voluntary or Private Agents |
035 | Prison Department Establishments |
036 | Public Place or Street, or Police Station |
037 | Other locations not classified elsewhere |
038 | NHS Nursing Home |
039 | Other Residential Care Homes managed by the NHS |
Change to Attribute: New Attribute
This item is being used for development purposes and has not yet been assured by the Information Standards Board for Health and Social Care.
The type of coding system used to classify the type of LOCATION.
LOCATION TYPE CODING TYPE details the coding structure applied in the following circumstances:
- ACTIVITY LOCATION TYPE CODE should be used in all other instances.
National Codes:
1 | LOCATION TYPE CODE |
2 | ACTIVITY LOCATION TYPE CODE |
This attribute is also known by these names:
Context | Alias |
---|---|
plural | LOCATION TYPE CODING TYPES |
Change to Data Element: New Data Element
Format/Length: | an3 |
HES Item: | |
National Codes: | See ACTIVITY LOCATION TYPE CODE |
Default Codes: |
This item is being used for development purposes and has not yet been assured by the Information Standards Board for Health and Social Care.
Notes:
ACTIVITY LOCATION TYPE CODE is the same as attribute ACTIVITY LOCATION TYPE CODE.
ACTIVITY LOCATION TYPE CODE replaces LOCATION TYPE and should be used for all new and developing data sets and for XML messages.
This data element is also known by these names:
Context | Alias |
---|---|
plural | ACTIVITY LOCATION TYPE CODES |
Change to Data Element: Changed Description
Format/Length: | n2 |
HES Item: | |
National Codes: | See LOCATION TYPE CODE |
Default Codes: |
This item is being updated for development purposes and the changes have not yet been assured by the Information Standards Board for Health and Social Care.
Notes:LOCATION TYPE is the same as attribute LOCATION TYPE CODE.
See Location Type Codes for coding and usage.LOCATION TYPE will be replaced with ACTIVITY LOCATION TYPE CODE, which should be used for all new and developing data sets and for XML messages.
The codes used for this Data Element are under review.
Permitted National Codes for use in the Commissioning Data Sets:
01 | Client's or PATIENT's Home |
02 | Health Centre |
03 | GP Practice premises other than Health Centre |
04 | WARD on NHS Hospital Site |
06 | Hospice |
07 | Other Voluntary or Private Hospital or Nursing Home |
08 | Group Home managed by the NHS |
09 | Group Home managed by Local Authority |
10 | Group Home managed by Voluntary or Private Agents |
11 | Other Residential Care Homes managed by Local Authority |
12 | Other Residential Care Homes managed by Voluntary or Private Agents |
13 | NHS Day Care Facility on NHS Hospital Site |
14 | NHS Day Care Facility on Other Sites |
15 | Day Centre managed by Local Authority |
16 | Day Centre managed by Voluntary or Private Agents |
17 | NHS Consultant Clinic Premises on a NHS Hospital Site |
18 | NHS Consultant Clinic Premises off a NHS Hospital Site |
19 | Health Clinic managed by the NHS |
20 | Health Clinic managed by Voluntary or Private Agents |
21 | Resource Centre on NHS Hospital Site |
22 | Resource Centre managed by the NHS off NHS Hospital Site |
23 | Resource Centre managed by Local Authority |
24 | Resource Centre managed by Voluntary or Private Agents |
25 | Professional Staff Group Department on NHS Hospital Site |
26 | Professional Staff Group Department managed by the NHS off NHS Hospital Site |
27 | Professional Staff Group Department managed by Local Authority |
28 | Professional Staff Group Department managed by Voluntary or Private Agents |
29 | Educational Establishment Premises managed by Local Authority or Grant Maintained |
30 | Educational Establishment Premises managed by Voluntary or Private Agents |
31 | Other Health or Local Authority Facility on NHS Hospital Site |
32 | Other Health or Local Authority Site managed by the NHS off NHS Hospital Site |
33 | Other Health or Local Authority Site managed by Local Authority |
34 | Other Health or Local Authority Site managed by Voluntary or Private Agents |
35 | Prison Department Establishments |
36 | Public Place or Street, or Police Station |
37 | Other locations not classified elsewhere |
38 | NHS Nursing Home |
39 | Other Residential Care Homes managed by the NHS |
Use in the Future Outpatient CDS:If the LOCATION TYPE where treatment is intended to take place is not yet known, this Data Element should be omitted.If the LOCATION TYPE where treatment is intended to take place is not yet known, this Data Element should be omitted.
Please note that the following Central Return forms have been discontinued with effect from 1st April 2004:KC56: Patient Care in the Community: District NursingKC57: Patient Care in the Community: Community Psychiatric NursingKC58: Patient Care in the Community: Learning Disabilities Nursing.
Change to Data Element: Changed Description
Format/Length: | n3 |
HES Item: | |
National Codes: | |
Default Codes: | 096 - Other |
Notes:
Permitted National Codes:
003 | GP Practice Premises other than Health Centre |
070 | Health Clinic/Community Clinic. This is derived from LOCATION TYPE CODE 002 'Health Centre', 019 'Health Clinic managed by the NHS' and 020 'Health Clinic managed by Voluntary or Private Agents' |
080 | Educational Establishment Premises. This is derived from LOCATION TYPE CODE 029 'Educational Establishment Premises managed by Local Authority or Grant Maintained' and 030 'Educational Establishment Premises managed by Voluntary or Private Agents' |
096 | Other |
Note: If a GP Practice is also based at a Health Centre, those vaccinations administered by the GP Practice should be recorded under 003 'GP Practice Premises other than Health Centre'.
For enquiries about this Change Request, please email datastandards@nhs.net
